If you’re looking for the 15 best CAD workstations for designers in 2026, I recommend checking out options with high-performance processors like Xeon or Core i7, professional-grade graphics such as NVIDIA Quadro series, and plenty of RAM—at least 32GB or more. Fast SSD storage and multiple high-res display support are essential for smooth workflows. Stay with me to explore detailed specs and top models that can boost your productivity and reliability in demanding CAD projects.
Key Takeaways
- High-performance CPUs like dual Intel Xeon Gold or Core i7 are essential for real-time rendering and complex calculations.
- Professional-grade GPUs such as NVIDIA Quadro and RTX A3000 ensure high-fidelity visuals and multi-monitor support.
- Ample RAM (up to 512GB) and fast NVMe SSDs facilitate smooth multitasking and handling large CAD files.
- Certified workstations undergo rigorous testing for stability and compatibility with CAD software, reducing downtime.
- Support for high-resolution displays and advanced interfaces (DisplayPort 1.4, HDMI 2.1) enhances visual clarity and future-proofing.
| Refurbished ThinkStation P520 Workstation with Xeon CPU |  | Reliable Workstation | Processor Type: Intel Xeon W-2123 | RAM Capacity: 64GB DDR4 | Storage Type & Size: 512GB NVMe SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| High-End Precision 7920 Tower Workstation with Dual Xeon |  | High-Performance Powerhouse | Processor Type: Dual Intel Xeon Platinum 8160 | RAM Capacity: Up to 1.5TB DDR4 | Storage Type & Size: 1TB NVMe SSD + 4TB HDD | VIEW LATEST PRICE | See Our Full Breakdown |
| Refurbished ThinkStation P520 Workstation with Xeon CPU | | Versatile Professional | Processor Type: Intel Xeon W-2135 | RAM Capacity: 32GB DDR4 | Storage Type & Size: 1TB NVMe SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| Dell Workstation 5060 PC with i5 Quadro P620 32GB RAM |  | Budget-Friendly Choice | Processor Type: Intel i5-8500 | RAM Capacity: 32GB DDR4 | Storage Type & Size: 1TB NVMe SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| Dell Precision 3591 Mobile Workstation Laptop |  | Mobile Power Solution | Processor Type: Intel 16-Core Ultra 7 165H vPro | RAM Capacity: 64GB DDR5 | Storage Type & Size: 2TB PCIe NVMe SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| Refurbished ThinkStation P520 Workstation with Xeon CPU | | Compact & Capable | Processor Type: Intel Xeon W-2123 | RAM Capacity: Up to 256GB DDR4 | Storage Type & Size: 1TB NVMe SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| Renewed PC Workstation with Xeon 2TB SSD Quadro P2000 |  | Expandable Powerhouse | Processor Type: Intel Xeon W-2135 | RAM Capacity: 32GB DDR4 | Storage Type & Size: 2TB NVMe SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| Refurbished ThinkStation P520 Workstation with Xeon CPU | | Space-Saving Design | Processor Type: Intel Xeon W-2123 | RAM Capacity: Up to 256GB DDR4 | Storage Type & Size: 512GB NVMe SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| Dell Precision 7670 Mobile Workstation with RTX A3000 |  | Top-tier Mobility | Processor Type: Intel Core i7-12850HX | RAM Capacity: 64GB DDR5 | Storage Type & Size: 1TB PCIe NVMe SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| Lenovo ThinkStation P3 Tiny Desktop (NVIDIA T400) |  | Miniature Power | Processor Type: Intel Core i7-14700 | RAM Capacity: 64GB DDR5 | Storage Type & Size: 2TB SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| High-End ThinkStation P920 Workstation 64GB NVMe SSD |  | Extreme Performance | Processor Type: Dual Intel Gold 5118 | RAM Capacity: Up to 1TB DDR4 | Storage Type & Size: 1TB NVMe SSD + 8TB HDD | VIEW LATEST PRICE | See Our Full Breakdown |
| PCSP Xeon Gold Workstation with 1TB SSD & 8TB HDD |  | High-End Reliability | Processor Type: Dual Intel Xeon Gold 6154 | RAM Capacity: Up to 1TB DDR4 | Storage Type & Size: 1TB NVMe SSD + 8TB HDD | VIEW LATEST PRICE | See Our Full Breakdown |
| PCSP ThinkStation P920 Workstation 16-Core 512GB SSD |  | Multi-Display Ready | Processor Type: Dual Intel Silver 4110 | RAM Capacity: Up to 512GB DDR4 | Storage Type & Size: 512GB NVMe SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| HP Z2 G3 Mini Workstation i7 512GB SSD 32GB RAM |  | Space-Efficient Power | Processor Type: Intel Core i7-6700 | RAM Capacity: 32GB DDR4 | Storage Type & Size: 512GB SSD | VIEW LATEST PRICE | See Our Full Breakdown |
| Mid Level ThinkStation P920 Workstation (Renewed) |  | Enterprise Grade | Processor Type: Dual Intel Gold 5122 | RAM Capacity: Up to 1TB DDR4 | Storage Type & Size: 1TB NVMe SSD | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
-
PCSP High-End Precision 7920 Tower Workstation | 2X Intel Xeon Platinum 8160 (48 Cores, 96 Threads) | 1TB NVMe + 4TB HDD | Quadro P2000 5GB | Windows 11 Pro | 384GB DDR4 | Renewed PC Desktop Computer
EXTREME MULTI-CORE PERFORMANCE – Dual Intel Xeon Platinum 8160 CPUs deliver a total of 48 cores and 96...
As an affiliate, we earn on qualifying purchases.
Refurbished ThinkStation P520 Workstation with Xeon CPU
If you’re a designer or engineer who needs a reliable, high-performance workstation for CAD and 3D modeling, the refurbished ThinkStation P520 with Xeon CPU is an excellent choice. It’s powered by an Intel Xeon W-2123 processor, offering 4 cores and 8 threads at 3.6GHz, with turbo up to 3.9GHz. The workstation comes with 64GB of DDR4 RAM and a fast 512GB NVMe SSD, ensuring smooth multitasking and quick load times. The NVIDIA Quadro M2000 graphics supports multiple 4K monitors, perfect for detailed design work. Built for stability and expandability, it’s a solid, professional-grade machine ready for demanding CAD and engineering tasks.
- Processor Type:Intel Xeon W-2123
- RAM Capacity:64GB DDR4
- Storage Type & Size:512GB NVMe SSD
- Graphics Card:NVIDIA Quadro M2000 4GB
- Power Supply Wattage:900W
- Form Factor / Size:Full Tower (18.1 x 6.5 x 17.3 in)
- Additional Feature:Supports multi-monitor setup
- Additional Feature:Dual Ethernet ports
- Additional Feature:Full-size tower design
-
PCSP 2022 ThinkStation P520 Workstation, Intel Xeon W-2135 3.70GHz 6-Core, 1TB NVMe M.2 SSD, Quadro P4000 8GB (4X Display Ports), Windows 11 Pro (Renewed) (32GB DDR4)
Processor: Intel Xeon W-2135 6-Core 3.7GHz
As an affiliate, we earn on qualifying purchases.

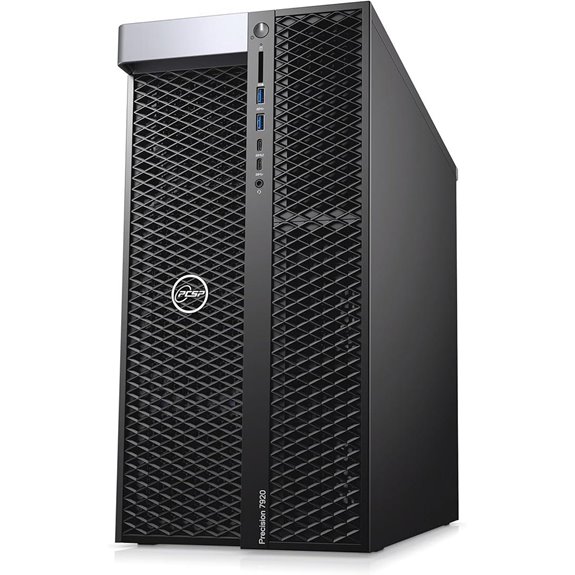

High-End Precision 7920 Tower Workstation with Dual Xeon
The High-End Precision 7920 Tower Workstation with Dual Xeon is designed for demanding designers and engineers who need maximum processing power and reliability. It features dual Intel Xeon Platinum 8160 CPUs, offering 48 cores and 96 threads, which excel at multitasking, rendering, CAD, and AI workloads. With up to 1.5TB of DDR4 RAM, it handles large simulations and virtualization effortlessly. The system includes a fast 1TB NVMe SSD and a 4TB HDD for storage. It’s equipped with NVIDIA Quadro P2000 graphics, supporting multiple monitors, and boasts robust connectivity options. This workstation is built for high-performance, heavy-duty professional tasks.
- Processor Type:Dual Intel Xeon Platinum 8160
- RAM Capacity:Up to 1.5TB DDR4
- Storage Type & Size:1TB NVMe SSD + 4TB HDD
- Graphics Card:NVIDIA Quadro P2000 5GB
- Power Supply Wattage:1400W
- Form Factor / Size:Full Tower (18.1 x 6.5 x 17.3 in)
- Additional Feature:Up to 1.5TB RAM capacity
- Additional Feature:Dual CPU configuration
- Additional Feature:4TB HDD storage
-
Dell Workstation 5060 PC Computer, Intel i5-8500, Editing/Design Nvidia Quadro P620, 32GB RAM, 1TB NVMe M.2, Windows 11 Pro, WiFi, Keyboard & Mouse, Office Desktop Computers (Renewed)
High-Performance Computing – Driven with a 8th Gen Intel i5, this Dell provides robust processing power for multi-tasking,...
As an affiliate, we earn on qualifying purchases.
Refurbished ThinkStation P520 Workstation with Xeon CPU
For professional designers who demand reliable performance and expandability, the PCSP ThinkStation P520 Workstation with Xeon CPU stands out as an excellent choice. It features an Intel Xeon W-2135 processor with 6 cores at 3.70GHz, ensuring robust multitasking and rendering capabilities. With 32GB of DDR4 RAM (expandable up to 256GB), a 1TB NVMe PCIe SSD, and an NVIDIA Quadro P4000 graphics card, it handles demanding CAD tasks effortlessly. Its extensive connectivity options, including multiple USB ports, Ethernet, and extra drive bays, make it highly versatile. The workstation’s 4K display support and durable design make it ideal for high-precision design work.
- Processor Type:Intel Xeon W-2135
- RAM Capacity:32GB DDR4
- Storage Type & Size:1TB NVMe SSD
- Graphics Card:NVIDIA Quadro P4000 8GB
- Power Supply Wattage:900W
- Form Factor / Size:Same as #1
- Additional Feature:4 DisplayPort outputs
- Additional Feature:Certified professional-grade workstation
- Additional Feature:2x 3.5-inch drive bays

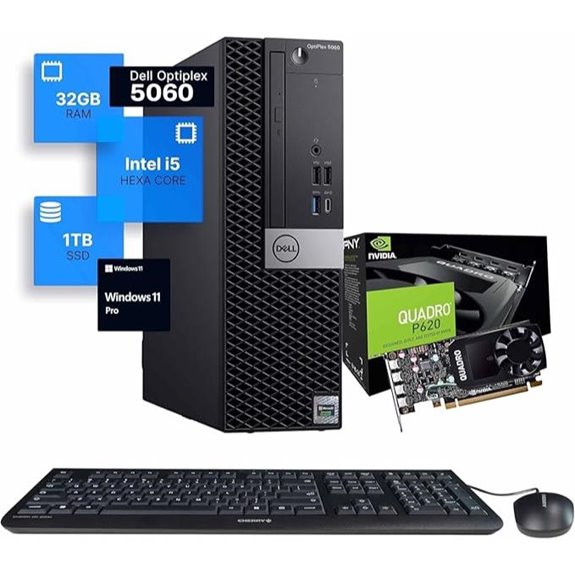

Dell Workstation 5060 PC with i5 Quadro P620 32GB RAM
Designed specifically for designers who need reliable performance, the Dell Workstation 5060 with an i5 processor, Quadro P620, and 32GB of RAM offers a balanced mix of power and affordability. Its 8th Gen Intel i5-8500 handles multitasking and data analysis efficiently, making it suitable for most CAD work. The NVIDIA Quadro P620 provides sharp visuals and smooth rendering for design software and multimedia tasks. With 32GB DDR4 RAM and a 1TB NVMe SSD, it guarantees fast data access and ample storage for complex projects. Built-in Wi-Fi, Bluetooth, and multiple ports support seamless connectivity, while Windows 11 Pro enhances overall security and productivity.
- Processor Type:Intel i5-8500
- RAM Capacity:32GB DDR4
- Storage Type & Size:1TB NVMe SSD
- Graphics Card:NVIDIA Quadro P620
- Power Supply Wattage:Not specified
- Form Factor / Size:Small, compact desktop
- Additional Feature:Comes with wired keyboard/mouse
- Additional Feature:Supports multiple monitor outputs
- Additional Feature:Pre-installed Windows 11 Pro
Dell Precision 3591 Mobile Workstation Laptop
Are you a designer or engineer seeking a portable yet powerful workstation? The Dell Precision 3591 Mobile Workstation Laptop fits the bill perfectly. It packs a robust Intel 16-Core Ultra 7 165H vPro processor, NVIDIA RTX 1000 6GB GDDR6 graphics, and 64GB DDR5 RAM, ensuring smooth multitasking and demanding tasks like rendering and modeling. Its 15.6″ FHD IPS display with anti-glare and support for 4K external monitors makes visuals crisp and detailed. Plus, with fast SSD storage, versatile connectivity options, and security features like a privacy webcam and fingerprint reader, this laptop offers reliable performance on the go without sacrificing portability.
- Processor Type:Intel 16-Core Ultra 7 165H vPro
- RAM Capacity:64GB DDR5
- Storage Type & Size:2TB PCIe NVMe SSD
- Graphics Card:NVIDIA RTX A3000 12GB
- Power Supply Wattage:1400W
- Form Factor / Size:Mid-tower, full-size
- Additional Feature:15.6″ FHD display
- Additional Feature:Long battery life
- Additional Feature:Privacy webcam shutter
Refurbished ThinkStation P520 Workstation with Xeon CPU
The Lenovo P520 Workstation stands out with its powerful Intel Xeon W-2123 processor and high-capacity 1TB NVMe SSD, making it an ideal choice for designers who need reliable, fast performance for demanding CAD projects. Its 4-core, 3.6GHz processor handles multitasking and complex modeling effortlessly. With up to 256GB of DDR4 RAM, it ensures smooth workflow and multitasking. The NVIDIA Quadro M2000 graphics card supports multiple high-resolution displays, perfect for visualization. Additionally, its expandability with extra drive bays and a 900W power supply guarantees future-proofing. Running Windows 11 Pro, it combines stability, security, and high performance for professional design work.
- Processor Type:Intel Xeon W-2123
- RAM Capacity:Up to 256GB DDR4
- Storage Type & Size:1TB NVMe SSD
- Graphics Card:NVIDIA Quadro M2000 4GB
- Power Supply Wattage:900W
- Form Factor / Size:Same as #1
- Additional Feature:Certified for professional software
- Additional Feature:Supports 4K resolution
- Additional Feature:Multiple USB ports
Renewed PC Workstation with Xeon 2TB SSD Quadro P2000
If you’re looking for a powerful workstation that handles demanding CAD and design tasks with ease, the Renewed PC Workstation with Xeon, 2TB SSD, and Quadro P2000 is an excellent choice. It features a robust Intel Xeon W-2135 6-core processor at 3.7GHz, up to 256GB of RAM, and a fast 2TB NVMe SSD for quick data access. The NVIDIA Quadro P2000 graphics card supports multiple displays and graphics-intensive workflows. Operating on Windows 11 Pro, this renewed system offers professional-grade performance suitable for architecture, engineering, and multimedia projects. Its reliable power supply and extensive connectivity make it a versatile, cost-effective solution for demanding professional applications.
- Processor Type:Intel Xeon W-2135
- RAM Capacity:32GB DDR4
- Storage Type & Size:2TB NVMe SSD
- Graphics Card:NVIDIA Quadro P2000 5GB
- Power Supply Wattage:1400W
- Form Factor / Size:Same as #1
- Additional Feature:2x 3.5-inch bays
- Additional Feature:5-star customer reviews
- Additional Feature:Supports multiple display setups
Refurbished ThinkStation P520 Workstation with Xeon CPU
For designers who need a reliable, high-performance workstation, the Lenovo ThinkStation P520 with Quadro M2000 stands out as an excellent option. It features an Intel Xeon W-2123 processor, up to 256GB DDR4 RAM, and a 512GB NVMe SSD, ensuring fast data access and multitasking. The Quadro M2000 GPU with 4GB dedicated memory handles CAD, 3D rendering, and graphics smoothly. Supporting 4K resolution and running Windows 11 Pro, it’s optimized for professional workloads. Its robust connectivity, including multiple USB ports and dual Ethernet, makes it versatile. Weighing around 31.5 pounds, it’s a solid choice for demanding design tasks.
- Processor Type:Intel Xeon W-2123
- RAM Capacity:Up to 256GB DDR4
- Storage Type & Size:512GB NVMe SSD
- Graphics Card:NVIDIA Quadro M2000 4GB
- Power Supply Wattage:900W
- Form Factor / Size:Same as #1
- Additional Feature:4 DisplayPort outputs
- Additional Feature:Supports high-performance tasks
- Additional Feature:Certified for professional workloads

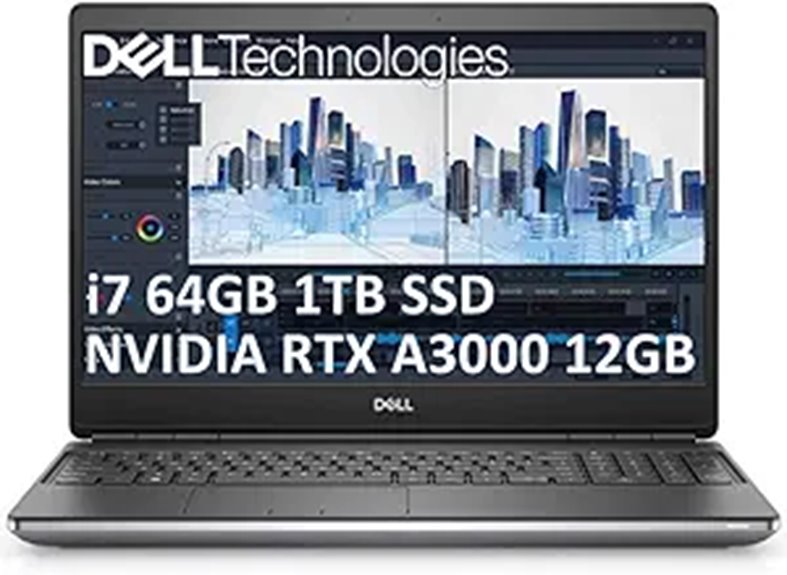

Dell Precision 7670 Mobile Workstation with RTX A3000
Designed specifically for creative professionals who demand high-performance graphics and processing power, the Dell Precision 7670 Mobile Workstation with RTX A3000 stands out as an ideal choice. It features an Intel Core i7-12850HX vPro processor, 64GB DDR5 RAM, and a 1TB PCIe NVMe SSD, with support for up to 12TB total storage. The NVIDIA RTX A3000 12GB GPU delivers exceptional visual fidelity for detailed design and multimedia tasks. Its 16-inch FHD+ display with wide viewing angles, plus extensive connectivity options like Thunderbolt 4 and HDMI, make it versatile and reliable for demanding CAD workflows on the go.
- Processor Type:Intel Core i7-12850HX
- RAM Capacity:64GB DDR5
- Storage Type & Size:1TB PCIe NVMe SSD
- Graphics Card:NVIDIA RTX A3000 12GB
- Power Supply Wattage:Not specified (high-end mobile)
- Form Factor / Size:Laptop (compact)
- Additional Feature:16″ anti-glare display
- Additional Feature:Wi-Fi 6E enabled
- Additional Feature:3-year warranty included
Lenovo ThinkStation P3 Tiny Desktop (NVIDIA T400)
The Lenovo ThinkStation P3 Tiny Desktop with NVIDIA T400 stands out as an ideal choice for designers working in tight spaces who need powerful performance without sacrificing desk real estate. Despite its compact size—just 7 x 7.2 x 1.5 inches and weighing only 3.01 lbs—it offers serious capabilities with an Intel Core i7-14700 20-core processor, 64GB DDR5 RAM, and a 2TB SSD. The NVIDIA T400 GPU handles CAD applications smoothly, supporting up to five 4K displays. Its extensive connectivity options, including USB-C, HDMI, DisplayPort, and Wi-Fi 6E, make it versatile, reliable, and perfect for demanding professional workflows.
- Processor Type:Intel Core i7-14700
- RAM Capacity:64GB DDR5
- Storage Type & Size:2TB SSD
- Graphics Card:NVIDIA T400 4GB
- Power Supply Wattage:Not specified (compact)
- Form Factor / Size:Tiny, mini desktop (~8.5 x 6.7 x 2.3 in)
- Additional Feature:Compact space-saving design
- Additional Feature:Supports up to 5 displays
- Additional Feature:Certified for ISV applications
High-End ThinkStation P920 Workstation 64GB NVMe SSD
If you’re working on complex CAD projects that demand exceptional processing power, the High-End ThinkStation P920 Workstation with 64GB of RAM and NVMe SSD is an ideal choice. It features dual Intel Gold 5118 processors with 12 cores each, delivering up to 24 cores for demanding tasks. With 64GB of DDR4 RAM, it handles multitasking smoothly, and the dual 1TB NVMe SSDs provide ultra-fast storage. Equipped with an NVIDIA Quadro P4000 GPU, it excels in graphics-intensive workloads. Its robust power supply and expandability make it a reliable, high-performance workstation for architects, engineers, and designers tackling intensive multimedia and CAD applications.
- Processor Type:Dual Intel Gold 5118
- RAM Capacity:Up to 1TB DDR4
- Storage Type & Size:1TB NVMe SSD + 8TB HDD
- Graphics Card:NVIDIA Quadro P4000 8GB
- Power Supply Wattage:1400W
- Form Factor / Size:Full Tower (24.4 x 7.87 x 17.56 in)
- Additional Feature:Dual Intel Gold processors
- Additional Feature:1400W power supply
- Additional Feature:4 DisplayPort outputs
PCSP Xeon Gold Workstation with 1TB SSD & 8TB HDD
For professionals who need reliable, high-performance computing, the PCSP Xeon Gold Workstation stands out with its dual Intel Xeon Gold 6154 processors, delivering a total of 36 cores at 3.0GHz. It features up to 1TB of DDR4 RAM, ensuring smooth handling of complex CAD files and multitasking. The 1TB NVMe SSD provides lightning-fast boot and load times, while the 8TB HDD offers ample storage for large project files. Equipped with an NVIDIA Quadro P4000 graphics card, it supports multiple displays and graphics-intensive tasks. Its extensive connectivity options and 1400W power supply make it ideal for demanding professional workflows.
- Processor Type:Dual Intel Xeon Gold 6154
- RAM Capacity:Up to 1TB DDR4
- Storage Type & Size:1TB NVMe SSD + 8TB HDD
- Graphics Card:NVIDIA Quadro P4000 8GB
- Power Supply Wattage:1400W
- Form Factor / Size:Similar to #11
- Additional Feature:Supports RAID configurations
- Additional Feature:8 USB ports total
- Additional Feature:2x 1Gb Ethernet ports

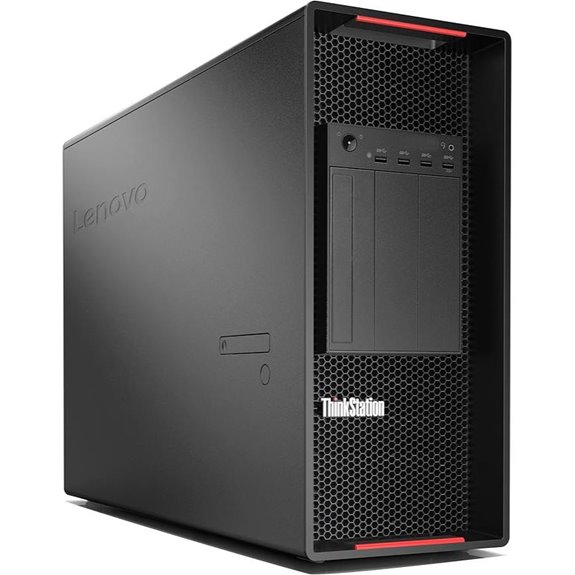

PCSP ThinkStation P920 Workstation 16-Core 512GB SSD
Designed to handle the most demanding CAD and 3D modeling tasks, the PCSP ThinkStation P920 Workstation delivers cutting-edge performance with its dual Intel Silver 4110 processors and up to 512GB of RAM. Its fast 512GB NVMe SSD guarantees quick data access, while the NVIDIA Quadro M2000 GPU manages graphics-intensive work seamlessly. With extensive expandability options, including two drive bays and RAID support, it’s built for large datasets and complex projects. The workstation offers robust connectivity, dual Ethernet ports, and a 1400W power supply for stability. Perfect for architects, engineers, and designers seeking reliable, high-performance hardware in a refurbished package.
- Processor Type:Dual Intel Silver 4110
- RAM Capacity:Up to 512GB DDR4
- Storage Type & Size:512GB NVMe SSD
- Graphics Card:NVIDIA Quadro M2000 4GB
- Power Supply Wattage:900W
- Form Factor / Size:Same as #11
- Additional Feature:Supports high-end graphics
- Additional Feature:4 DisplayPort outputs
- Additional Feature:Includes basic accessories

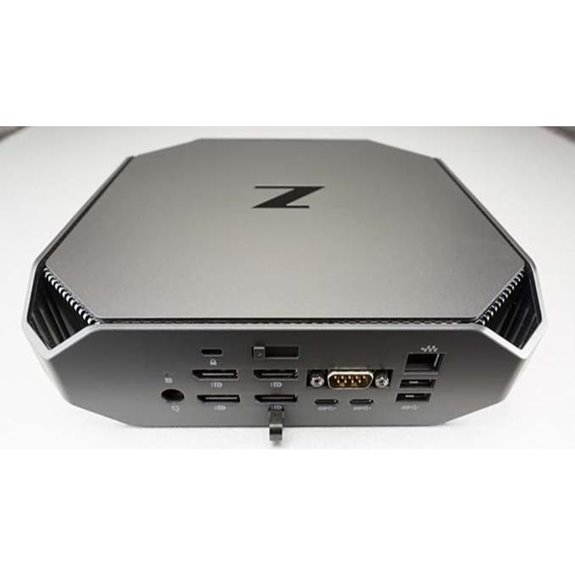

HP Z2 G3 Mini Workstation i7 512GB SSD 32GB RAM
The HP Z2 G3 Mini Workstation stands out as an ideal choice for CAD designers who need powerful performance in a compact form. Its small footprint, roughly 8.5 by 6.7 inches, makes it perfect for space-limited setups. Despite its size, it packs an Intel Core i7 processor, 32GB of RAM, and a 512GB NVMe SSD, ensuring smooth handling of demanding CAD applications. The workstation supports professional graphics with NVIDIA Quadro M620 and up to four displays. Its extensive connectivity options, including DisplayPorts, USB-C, LAN, and audio jacks, make it versatile and reliable for intensive design workflows.
- Processor Type:Intel Core i7-6700
- RAM Capacity:32GB DDR4
- Storage Type & Size:512GB SSD
- Graphics Card:NVIDIA Quadro M620
- Power Supply Wattage:Not specified
- Form Factor / Size:Mini desktop (~8.5 x 6.7 x 2.3 in)
- Additional Feature:Ultra-small form factor
- Additional Feature:Certified for professional software
- Additional Feature:Supports up to 4 monitors
Mid Level ThinkStation P920 Workstation (Renewed)
If you’re a professional in architecture, product design, or multimedia work, the Mid Level ThinkStation P920 Workstation (Renewed) offers the high performance and expandability needed to handle demanding CAD applications. Equipped with dual Intel Gold 5122 8-core processors at 3.6GHz, it delivers 16 cores for multitasking and complex computations. With up to 1TB of DDR4 RAM and a 1TB NVMe SSD, it guarantees fast data access and storage flexibility. The NVIDIA Quadro P2000 graphics card supports graphics-intensive tasks, while the 1400W power supply guarantees stable operation. Certified renewed, it looks and functions like new, making it a reliable choice for professional CAD work.
- Processor Type:Dual Intel Gold 5122
- RAM Capacity:Up to 1TB DDR4
- Storage Type & Size:1TB NVMe SSD
- Graphics Card:NVIDIA Quadro P2000 5GB
- Power Supply Wattage:1400W
- Form Factor / Size:Full Tower (24.4 x 7.87 x 17.56 in)
- Additional Feature:Supports extensive storage expansion
- Additional Feature:High customer satisfaction
- Additional Feature:80 PLUS Platinum certified PSU
Factors to Consider When Choosing CAD Workstations for Designers
When selecting a CAD workstation, I focus on key factors like processor speed, graphics card quality, and memory capacity to guarantee smooth performance. Storage options and expandability also matter, so I can keep up with large files and future upgrades. Understanding these elements helps me choose a system that meets both current needs and long-term demands.
Processor Power and Speed
Choosing the right CPU for a CAD workstation hinges on its power and speed, as these factors directly influence how smoothly and efficiently I can work on complex designs. A higher core and thread count improves multitasking and speeds up processing large CAD files. Processor clock speeds of 3.5GHz or above are essential for handling real-time rendering and simulations without lag. Multi-core Xeon or Core i7/i9 processors provide the necessary power for demanding applications and large projects. Modern CPUs with support for instruction sets like AVX2 or AVX-512 optimize performance for design computations, making workflows faster. Ultimately, the processor’s performance impacts rendering times, simulation accuracy, and real-time editing smoothness, making it a critical factor for an effective CAD workstation.
Graphics Card Quality
A high-quality CAD workstation demands a dedicated, high-performance graphics card with ample VRAM, typically 4GB or more, to effectively handle complex 3D models and rendering tasks. For professional use, NVIDIA Quadro or AMD Radeon Pro cards are preferred because of their optimized drivers and stability with CAD software. These GPUs support multiple high-resolution monitors, like 4K displays, which boosts productivity in multi-screen setups. A top-tier CAD graphics card should also support real-time rendering, smooth viewport navigation, and acceleration features tailored for engineering and design applications. Ensuring the GPU is certified and delivers reliable performance minimizes crashes and visual inaccuracies during intensive workflows. Investing in a quality graphics card directly impacts the efficiency, accuracy, and overall experience of your CAD projects.
Memory Capacity and Speed
High memory capacity is vital for guaranteeing smooth performance when working with complex CAD files and multi-layered drawings. I recommend at least 32GB of RAM, especially for handling large projects, with some setups requiring up to 256GB or 512GB to prevent bottlenecks during intensive tasks like rendering. Faster RAM, such as DDR4 at 3200MHz or higher, boosts data transfer rates, making your workstation more responsive. Low latency memory reduces lag during real-time visualization and interactive design sessions, which is imperative for productivity. Upgrading to high-speed, high-capacity RAM allows seamless multitasking and efficient processing of resource-heavy CAD applications. Prioritizing memory capacity and speed ensures your workstation can keep pace with demanding workflows and complex modeling tasks efficiently.
Storage Options and Speed
When considering storage options for a CAD workstation, speed and capacity directly impact your productivity. SSDs, especially NVMe PCIe models, deliver rapid data transfer speeds vital for handling large CAD files, reducing load times and improving workflow. For professional use, a capacity of 1TB or more is recommended to store extensive project files comfortably. Combining fast SSDs for active projects with HDDs for bulk storage offers a good balance between performance and capacity. High read/write speeds are essential when working with complex models, high-resolution textures, and layered assemblies, as they minimize delays and keep your work flowing smoothly. Selecting the right storage setup ensures you can efficiently manage your files without bottlenecks, ultimately boosting your overall productivity.
Expandability and Ports
Choosing a CAD workstation with ample expandability and ports is essential to keep your workflow flexible and efficient. I recommend looking for models with multiple USB 3.1 and USB-C ports, so you can easily connect peripherals, external drives, and VR headsets without hassle. Additional drive bays, like 2x 3.5-inch slots, let you expand storage as your project files grow. Multiple DisplayPort or HDMI outputs are crucial for supporting multi-monitor setups, which are vital for CAD work. Front and rear I/O ports improve accessibility, allowing quick connections to devices without crawling behind the workstation. Thunderbolt 4 ports are also a plus for high-speed data transfer and compatibility with advanced peripherals. Prioritizing expandability and ports ensures your workstation remains adaptable to evolving project demands.
Display Compatibility
Ensuring your workstation supports multiple high-resolution displays is crucial for detailed and accurate CAD work. I recommend opting for 4K or higher monitors to maximize clarity and precision. Check that your graphics card has enough DisplayPorts or HDMI outputs to connect all your monitors without hassle. It’s also important to verify that the graphics hardware is certified for CAD software, which guarantees compatibility and peak performance. Confirm that your system can support the maximum screen resolution you need for your projects. Additionally, consider the bandwidth and compatibility of video interfaces like DisplayPort 1.4 or HDMI 2.1—these future-proof your multi-monitor setup. Prioritizing these factors ensures your workstation can handle complex designs efficiently and with excellent visual fidelity.
Reliability and Certification
Reliability and certification are vital factors to contemplate because they directly impact the stability and performance of your CAD workstation. Certified workstations have undergone testing to guarantee compatibility and stability with professional design software, reducing crashes and data loss. Certification programs verify that hardware meets industry standards for performance, dependability, and longevity, which is essential for demanding tasks like complex modeling and rendering. Workstations with professional certifications from software vendors or industry standards are more likely to support intensive workflows seamlessly. Reputable certified systems typically include warranties and support services that help maintain reliability over time. Choosing certified hardware can prevent compatibility issues and ensure your workstation consistently delivers the professional-grade performance necessary for demanding CAD applications.
Frequently Asked Questions
How Does GPU Choice Impact CAD Performance for Complex Models?
Your GPU choice considerably impacts CAD performance, especially with complex models. A powerful GPU handles rendering, shading, and viewport navigation smoothly, reducing lag and improving efficiency. I’ve found that high-end GPUs like NVIDIA’s Quadro or RTX series offer better stability and real-time rendering capabilities, making my workflow faster and more accurate. Skimping on GPU power can cause slowdowns and crashes, so I always prioritize a strong graphics card for demanding CAD tasks.
What Are the Benefits of Workstation Portability for Designers?
Workstation portability really transforms how I work, letting me take my ideas anywhere. It’s like having a powerful studio in my bag, so I can sketch, model, or review projects on the go. This flexibility boosts my productivity and sparks creativity, especially when inspiration hits unexpectedly. Plus, I can collaborate more easily, sharing progress instantly. Portability truly keeps me connected and efficient, no matter where I am.
How Important Is Dual Monitor Support in CAD Workstations?
Dual monitor support is essential for CAD workstations because it boosts productivity and workflow efficiency. I find that having multiple screens allows me to view complex designs, tool palettes, and reference materials simultaneously without constant window switching. It creates a more organized workspace, reduces errors, and speeds up project completion. If you’re serious about CAD work, investing in a workstation with solid dual monitor support is definitely worth it.
Do Workstation Specifications Affect Software Compatibility and Updates?
Ever wonder if your workstation specs influence software compatibility and updates? They definitely do. I’ve found that a powerful CPU, ample RAM, and a compatible GPU ensure smooth operation and help prevent conflicts during updates. Skimp on these, and you risk performance issues or even software glitches. Up-to-date hardware means you’re ready for the latest CAD features and updates, keeping your workflow seamless and efficient.
What Maintenance Considerations Extend Workstation Lifespan?
To extend my workstation’s lifespan, I regularly clean dust from vents and components to prevent overheating. I also keep the system updated with the latest drivers and software patches, which helps maintain performance and security. Additionally, I monitor hardware health using diagnostic tools and upgrade parts like RAM or SSDs when needed. Proper maintenance keeps my workstation running smoothly, saving me time and money in the long run.
Conclusion
Choosing the right CAD workstation is like finding the perfect brush for a masterpiece—each one helps your creativity shine brighter. Whether you need a powerhouse like the ThinkStation P520 or a sleek mobile option, the right tools elevate your design game. So, pick a workstation that fuels your imagination and keeps your ideas flowing seamlessly. With the right gear, your creative symphony will always hit the perfect note.
